In the world of construction, communication is often called the backbone of project success. Whether it is a high-rise building, a township, or a warehouse, clear communication among all stakeholders – client, consultant, project management consultant (PMC), contractors, vendors, and suppliers – ensures timely completion, cost control, and quality assurance.
Yet, miscommunication continues to be one of the leading causes of project delays, cost overruns, disputes, and even failures. This case study focuses on a Vacuum Dewatered Flooring (VDF) project, a common flooring solution in industrial and commercial developments across India. The project, which initially looked simple, faced serious challenges due to communication gaps at multiple levels.
Understanding VDF Flooring in Indian Context
What is VDF Flooring?
Vacuum Dewatered Flooring (VDF) is a special type of concrete flooring used widely in factories, warehouses, logistics hubs, parking lots, and industrial sheds. The process involves laying a concrete floor and then removing excess water from the surface using a vacuum dewatering pump. This results in:
- High strength flooring with reduced shrinkage cracks
- Smooth finish for easy movement of vehicles and goods
- Durability under heavy industrial loads
- Economical solution compared to epoxy or tiles
Why VDF is Common in India
Cost-effectiveness: Large-scale industrial flooring in India needs budget-friendly solutions.
Ease of execution: Contractors with basic equipment can implement VDF.
Performance: Provides long-term durability under forklifts, trolleys, and heavy trucks.
Given these advantages, VDF flooring has become the standard choice for clients across Bangalore, Hyderabad, Chennai, Pune, and NCR industrial hubs.
However, like all construction activities, VDF execution requires precision and coordination between client, design consultant, PMC, and contractor. A single miscommunication can compromise the quality of thousands of square feet of flooring.
Background of the Case Study
The project under discussion was an industrial warehouse in South India with a total built-up area of around 2,00,000 sq.ft. The flooring was critical because the warehouse would house heavy pallet racks and high-speed forklifts.
Project Stakeholders
Client
A logistics company expanding operations.
PMC
Responsible for overall project management, quality checks, and coordination.
Structural Consultant
Provided design drawings and specifications.
Contractor
Local flooring contractor with past experience in VDF.
Material Suppliers
Ready-mix concrete (RMC) plant and admixture supplier.
Scope of Flooring
Area: Approx. 1,80,000 sq.ft. of VDF flooring.
Thickness: 150 mm plain cement concrete flooring over well-compacted base.
Specification: M25 grade with specified admixture, steel reinforcement mesh, and floor hardener topping.
Timeline: 45 days.
At the start, all parties agreed to specifications. However, a series of miscommunications led to major setbacks.

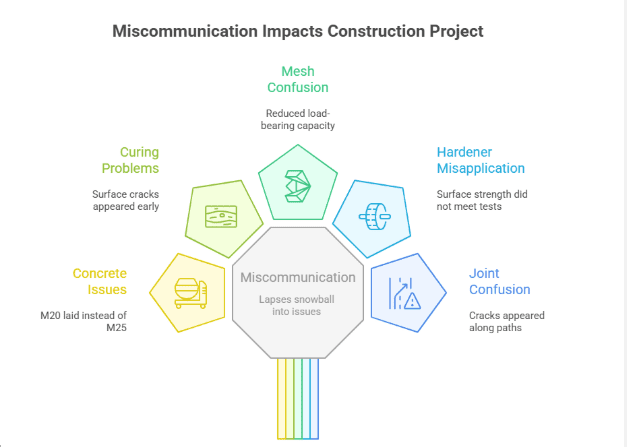

The Miscommunication Timeline
Let us reconstruct the sequence of events to understand how small lapses snowballed into big issues.
Stage 1: Design Clarification Issues
The structural consultant's drawing mentioned M25 concrete, but in a note below, it mentioned "minimum M20 acceptable".
The contractor assumed M20 was sufficient and placed the RMC order accordingly.
The PMC expected M25 but did not cross-check the order with the supplier.
The client trusted that "all is in order".
Result: First 10,000 sq.ft. was laid in M20 instead of M25.
Stage 2: Communication Gap on Curing Method
The PMC instructed that curing must be done using ponding and plastic sheets.
The site supervisor of the contractor misunderstood and only used sprinkling of water twice daily.
No documentation or method statement was submitted.
Result: Surface cracks appeared within the first week.
Stage 3: Reinforcement Mesh Confusion
Drawings mentioned "welded mesh as per IS standards".
The contractor used locally fabricated GI mesh, assuming it was acceptable.
The PMC noticed late, after nearly 30% of the area was already executed.
Result: Reduced load-bearing capacity, future risk of floor failure.
Stage 4: Floor Hardener Misapplication
Client required metallic floor hardener for forklift operations.
Contractor applied non-metallic quartz hardener to save cost, citing "same performance".
Lack of technical approval led to a dispute.
Result: Surface strength did not meet abrasion resistance tests.
Stage 5: Expansion Joint Confusion
Structural drawings specified joints every 4.5 metres.
Contractor, to save labour, provided joints at 6 metres.
This was not immediately visible but became critical later.
Result: Multiple cracks appeared along forklift movement paths.

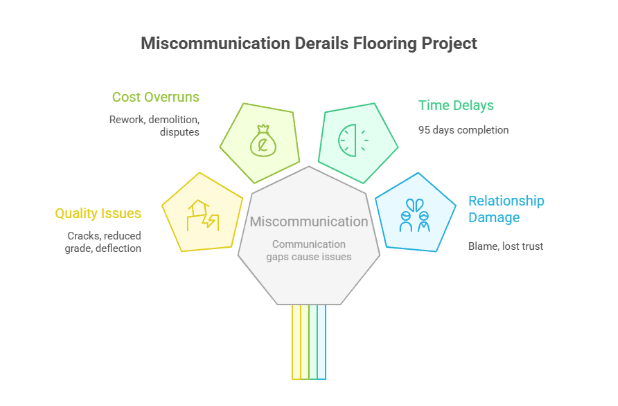

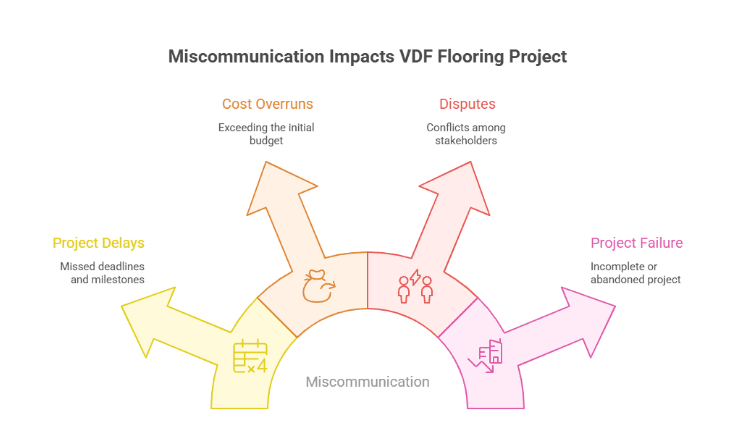

Impact of Miscommunication
The cumulative effect of these communication gaps was disastrous for the project.
1. Quality Issues
- Surface cracks in multiple locations
- Reduced concrete grade in part of the flooring
- Inadequate reinforcement mesh leading to deflection
2. Cost Overruns
- Rework required for nearly 40,000 sq.ft.
- Additional cost of demolishing and relaying floors
- Dispute resolution and consultancy charges
3. Time Delays
- Original timeline: 45 days
- Actual completion: 95 days
- Client lost revenue due to delayed warehouse operations
4. Relationship Damage
- Contractor blamed PMC for not guiding properly
- PMC blamed contractor for poor execution
- Client lost trust in both parties
This case clearly demonstrates how lack of communication can derail an otherwise simple flooring project.
Root Cause Analysis
Why did these miscommunications occur?
Ambiguity in Drawings
Consultant drawings were not crystal clear (M25 vs M20). Notes were overlooked by stakeholders.
Lack of Method Statements
No written documentation for curing, mesh, or hardener usage. Reliance on verbal instructions led to errors.
Assumptions without Confirmation
Contractor assumed cheaper alternatives would be acceptable. PMC did not insist on approvals before execution.
Poor Site Supervision
Supervisors lacked technical understanding. Communication was verbal, not documented.
Weak Coordination Meetings
Weekly progress meetings missed critical technical discussions.
Lessons for Construction Managers
For Project & Cost Managers
- Always insist on method statements and approvals before execution.
- Cross-check material purchase orders with design specifications.
- Use checklists for each activity to avoid oversight.
For Clients
- Do not assume consultants/contractors will "take care of it".
- Attend review meetings and ask for clarity in specifications.
- Insist on test reports for every stage.
For Contractors
- Never substitute materials without written approval.
- Train supervisors in technical communication.
- Submit RFI (Request for Information) whenever doubt arises.
For Consultants/PMC
- Provide clear, unambiguous drawings and notes.
- Conduct toolbox talks with site teams before execution.
- Document every instruction with emails, MOMs, or checklists.

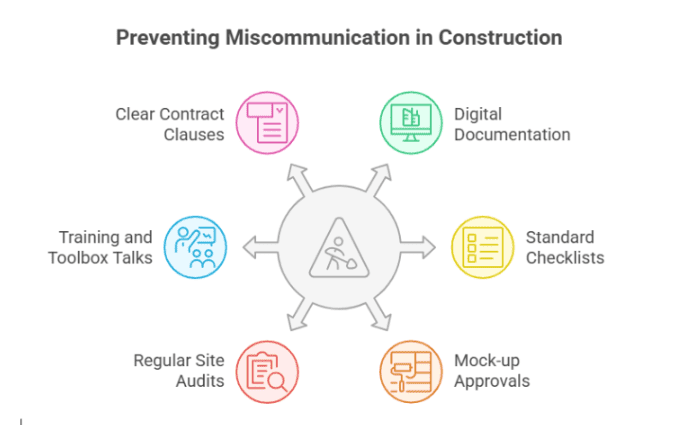

Preventing Miscommunication – Best Practices
To prevent such issues in future VDF or similar projects, Indian construction professionals can adopt the following strategies:
Digital Documentation
Use project management software for approvals. Store drawings, RFIs, MOMs in a central digital system.
Standard Checklists
Concrete grade check before pour. Mesh verification before laying. Joint spacing verification before cutting.
Mock-up Approvals
Execute a small trial patch of VDF floor. Get approval from client/consultant before large-scale work.
Regular Site Audits
Surprise checks by PMC. Independent third-party tests (cube strength, abrasion resistance).
Training and Toolbox Talks
Weekly training for supervisors and labour. Safety and quality combined sessions.
Clear Contract Clauses
Penalties for deviations without approval. Responsibility matrix for each stakeholder.
Wider Implications for Indian Construction Industry
The miscommunication in this VDF flooring project is not an isolated case. Across India, similar issues occur in:
- Waterproofing works (wrong chemical application due to poor communication)
- MEP installations (mismatched drawings between electrical and HVAC teams)
- Facade works (tolerances not conveyed to fabricators)
Such lapses collectively cost the Indian construction sector thousands of crores annually in rework, disputes, and delays.
By adopting professional communication protocols, the industry can improve:
- Project profitability
- Client satisfaction
- Reputation of consultants and contractors
Case Study Outcome
In this particular case:
- Client demanded rework of faulty areas.
- Contractor bore partial cost due to deviation without approval.
- PMC introduced stricter documentation and checklist system for future projects.
- All stakeholders agreed that a small investment in communication saves large costs later.
The VDF flooring project highlights a fundamental truth of construction management: miscommunication is more dangerous than material defects. While materials can be replaced, the cost of lost time, trust, and reputation is irreplaceable.
For Indian construction professionals – project managers, cost managers, engineers, contractors, and clients – the lesson is clear: Communicate clearly, Document everything, Verify before execution.
By doing so, we can ensure that simple projects remain simple and successful.
